Giant Revolt E+ 1 Gravel E-Bike (2024)

From rough roads to gravel, dirt and mixed terrain adventures, this versatile drop bar E-bike gives you the power to ride farther and faster on any route you can dream up.

KEY PERFORMANCE FACTORS

Unlimited Adventure

New SyncDrive EP6 motor powered by Shimano, lightweight ALUXX SL aluminium frame, smooth-riding tubeless tyres and a comfortable D-Fuse seatpost give you the ability to ride any road, any route.

Powerful, Integrated Battery

EnergyPak Smart Compact 500 battery delivers long-distance pedalling support and is seamlessly integrated into the frame for a sleek overall profile.

System Simplicity

With the press of the simple RideControl Go on/off button on the top tube, you are ready to go. The Smart Assist mode keeps you spinning without any worries. ANT+ capability further allows you to connect a bike computer of choice.

Range

Extreme: 55 km

Good: 110 km

Ideal: 180 km

Motor

Shimano EP600, 85Nm
Controller

Mode support switch from Shimano GRX STI
Display

Giant RideControl GO, frame-integrated LED consoleOptional wireless ANT+ display
Battery

Giant EnergyPak 500Wh Campact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Charger

Giant EnergyPak 4A smart charger compact, 60% charge in 2:00h
Connectivity

Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Colours

Gloss Phantom Green
Frame

ALUXX SL aluminium
Fork

Advanced-grade composite,12x100 thru-axle
Handlebar

Giant Contact XR D-Fuse 31.8 alloy 5° back sweep
Grips

Velo cork tape with gel
Stem

Giant Contact 31.8 alloy
Seatpost

Giant D-Fuse SL, composite
Saddle

Giant Approach
Pedals

Aluminium Platform
Shifters

Shimano Ultegra Di2 1x11
Front Derailleur

N/A

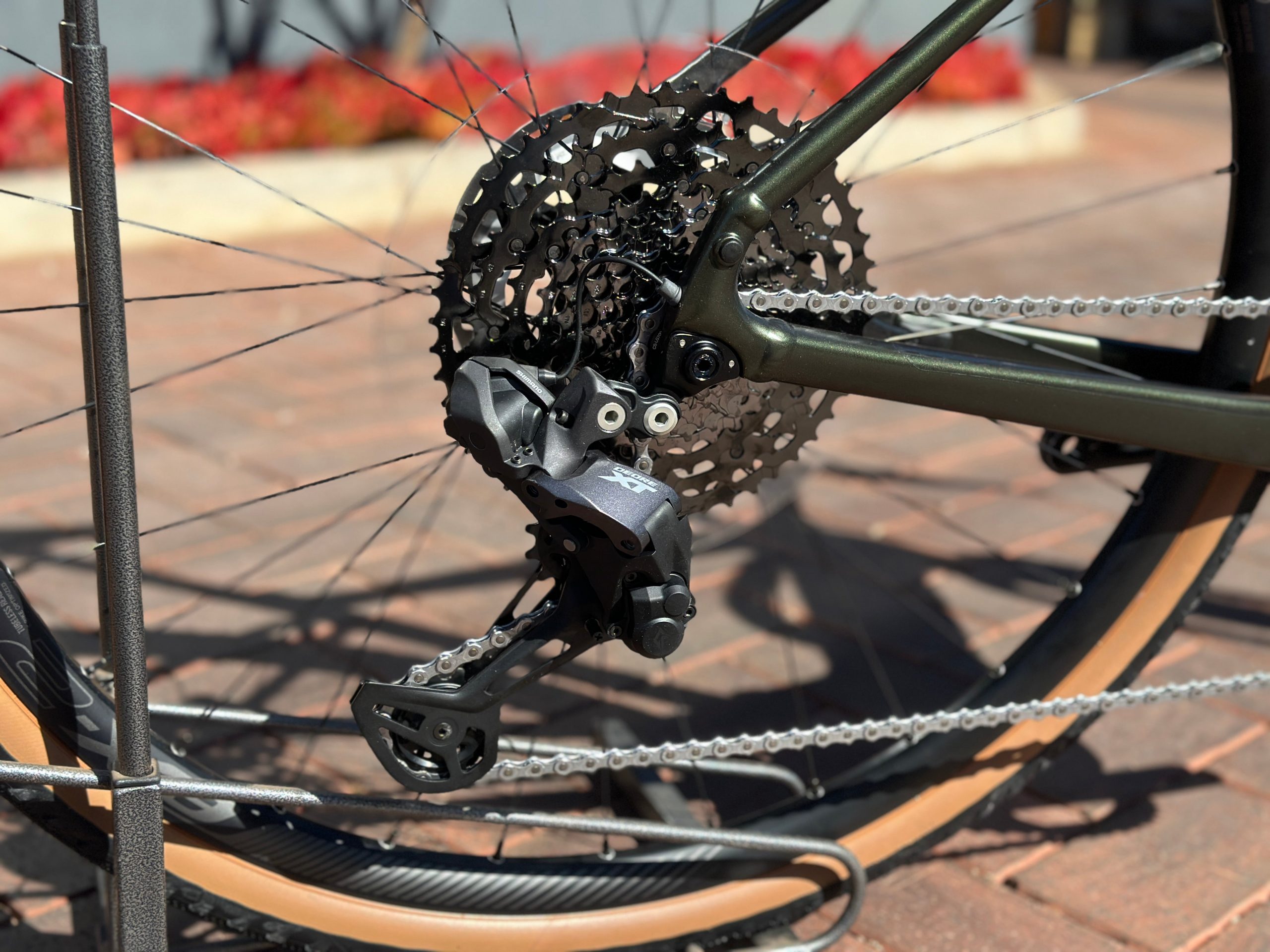

Rear Derailleur

Shimano XT Di2
Brakes

Shimano BR-R8170, hydraulic disc, 160mm [F/R]
Brake Levers

Shimano ST-R8170 hydraulic disc
Cassette

Shimano CS-LG700-11, 11-50t
Chain

KMC eGlide NP/BK, e-bike optimised

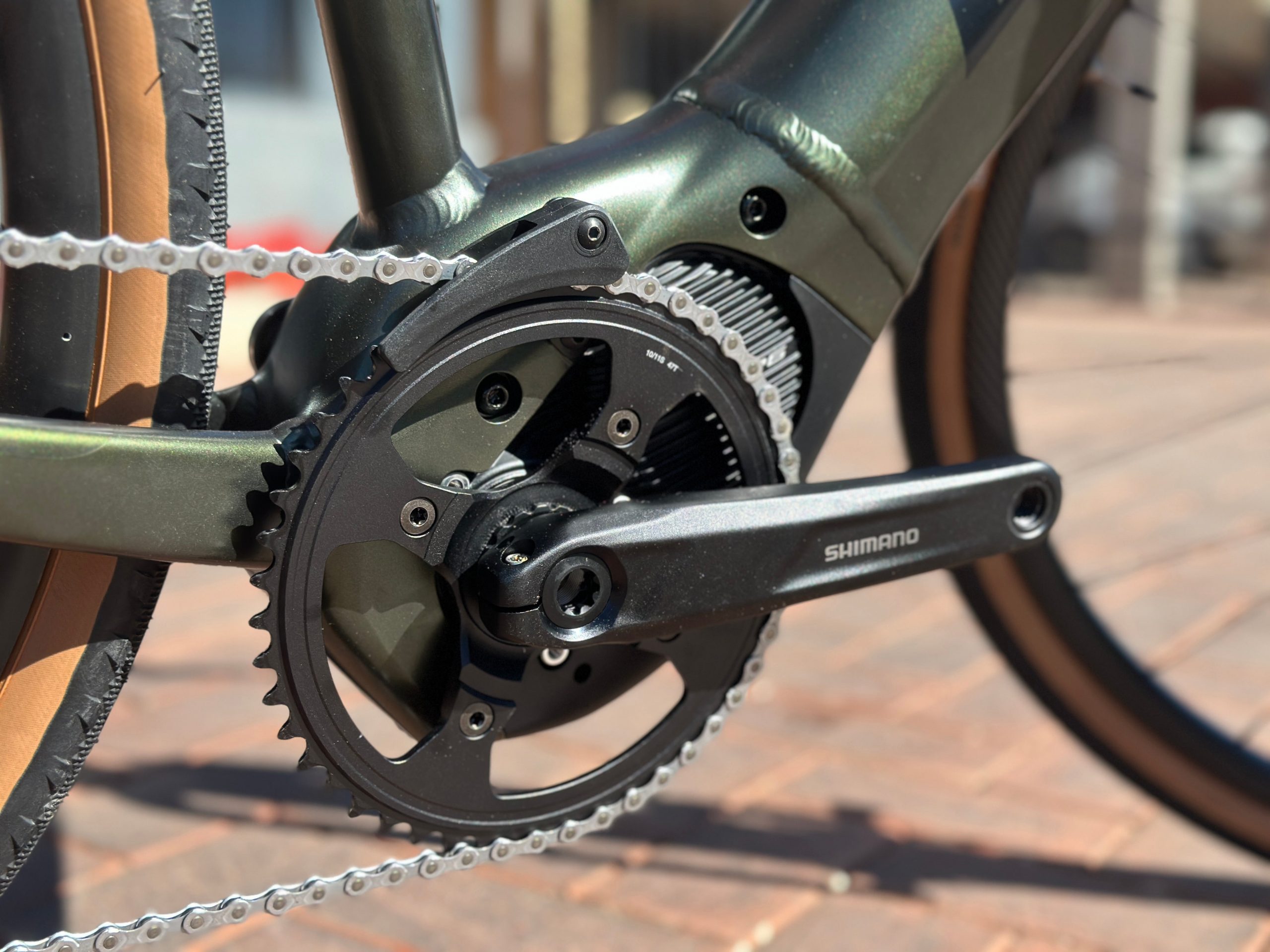

Crankset

Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring
Bottom Bracket

N/A
Rims

Giant eX 2, Tubeless Ready, 700c Aluminium
Hubs

Giant Performance Tracker Road, Sealed Bearing
Spokes

Sapim E-Lite [r] Race [f]
Tyres

Maxxis Receptor, EXO, 700x40c, Tubeless
Extras

Tubeless kit (liquid, valves, levers, manual, tool)
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
