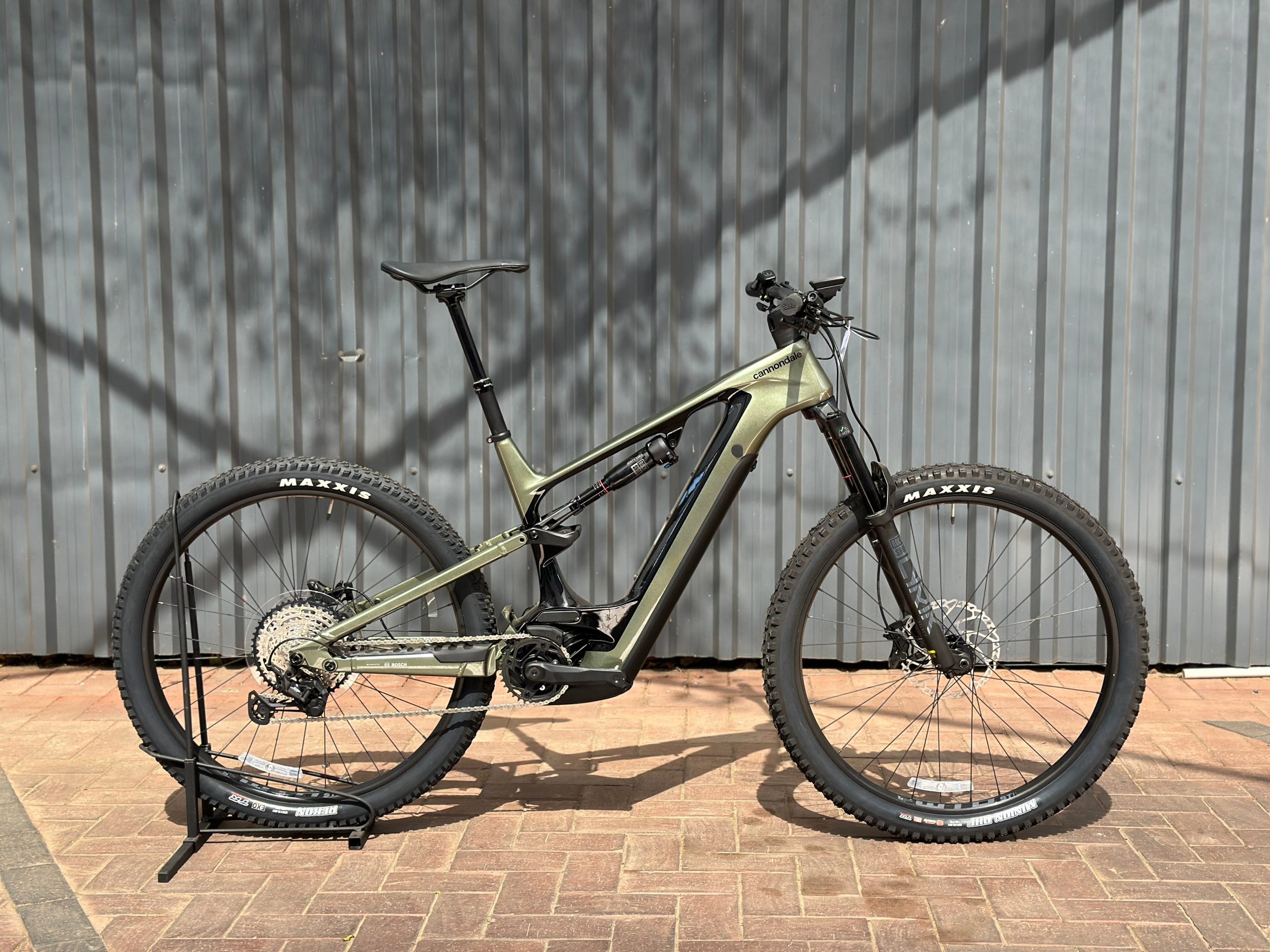

Cannondale Moterra Neo 2 Carbon E-Bike

Breaking Boundaries

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

 Where it thrives

Challenging trails, Up and down hills, Out in the elements

 What it's built for

Handling, Traction, Efficiency, Durability

 Highlights

• Proportional Response Tuned carbon frame / RockShox Lyrik Select+ fork, 150mm travel
• Bosch SmartSystem - 750wh battery & Performance CX motor
• Shimano XT/SLX 12-speed drivetrain

Frame
Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount

Fork
RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset

Headset
Acros integrated sealed bearing, tapered

Rear Shock
RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

Drive Unit
Bosch Performance Line CX 250W

Battery
Bosch PowerTube, 750Wh

Charger
Bosch 4A

Display
Bosch Kiox 300 w/ LED remote

Rear Derailleur
Shimano XT

Shifters
Shimano SLX, 12-speed

Chain
Shimano SLX, 12-speed

Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T

Rear Cogs
Shimano SLX, 10-51, 12-speed

Brakes
Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors

Brake Levers
Shimano MT501 hydraulic disc

Rims
WTB ST i30 TCS, 32h, tubeless ready

Spokes
DT Swiss Champion

Tire Size
2.6

Wheel Size
29

Hubs
(F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle

Tires
(F) Maxxis Minion DHF, 29×2.6″, EXO, tubeless ready / (R) Maxxis Rekon, 29×2.6″ (27.5×2.6″ – size Small), EXO, tubeless ready

Front Tire
Maxxis Minion DHF, 29×2.6″, EXO, tubeless ready

Rear Tire
Maxxis Rekon, 29×2.6″ (27.5×2.6″ – size Small), EXO, tubeless ready

Handlebar
Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm

Stem
Cannondale 2, 6061 Alloy, 35mm, 0°

Grips
Fabric FunGuy

Saddle
Fabric Scoop Shallow Sport, steel rails

Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
